Concrete Brick Compression Test Machine equipment Hydraulic Pump Rated Pressure 40Mpa 2000Kn Max Load
Concrete Compression Test Machine Equipment Overview

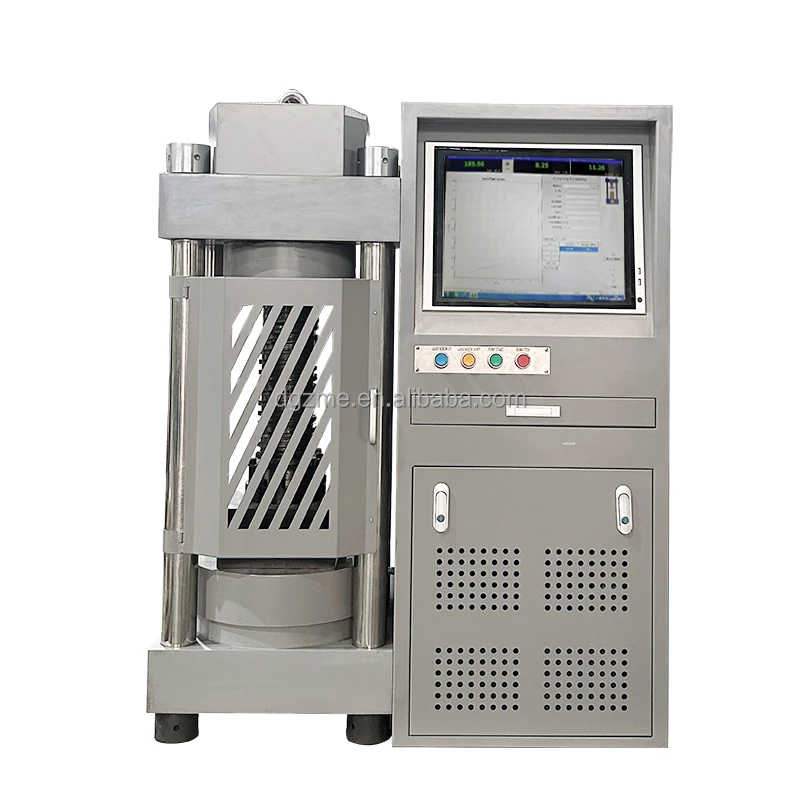

HZ-009 Concrete Hydraulic compression testing machine is mainly used for brick, stone, cement, concrete and other building materials, compressive strength test, also used to test the compressive performance of other materials.
Electric lift
The hydraulic oil tank driven by high-pressure pump into the motor oil, flows through the unidirectional valve, high pressure filter, pressure valve, servo valve, into the cylinder. Computer control signals to the servo valve, Control direction and opening of the servo valve, to control the flow into the cylinder, achieve constant test force control.
System including digital servo valve, high-precision sensors, controllers and software, high control precision and reliability. Meet GB, ISO, ASTM and other standards for cement, mortar, concrete and other materials testing requirements.
| Max load | 2000kN |
| Test force measuring range | 4%-100%FS |
| Test Force showed the relative error | ≤ indicating value±1% |
| Test Force Resolution | 0.03kN |
| Hydraulic pump rated pressure | 40MPa |
| Upper and lower bearing plate size | 370×370mm |
| Maximum distance | 330mm |
| Piston diameter | φ250mm |
| Piston stroke | 50mm |
| Motor Power | 0.77 kW |
| Outside dimension (l*w*h) | 640×720×1500 mm |
| Weight | 2000kg |

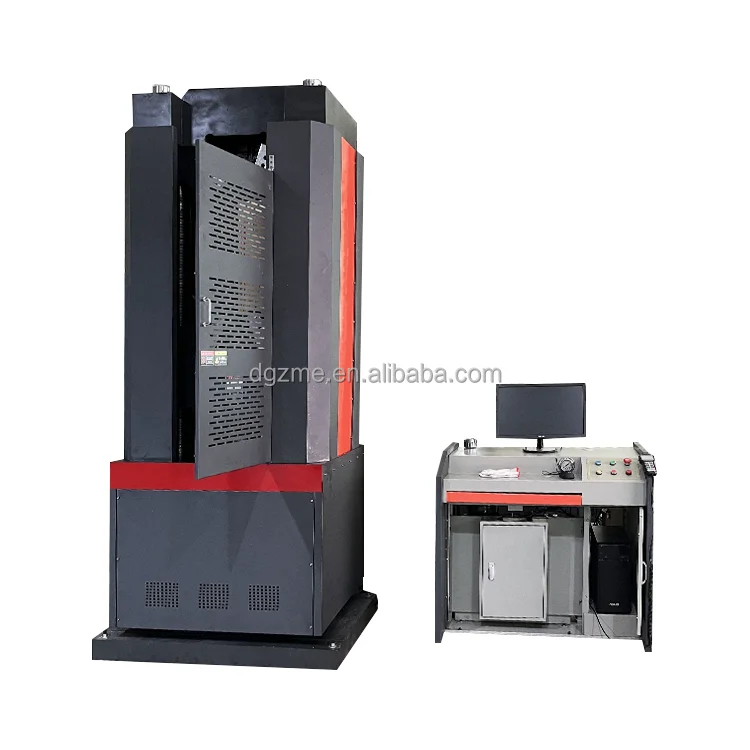

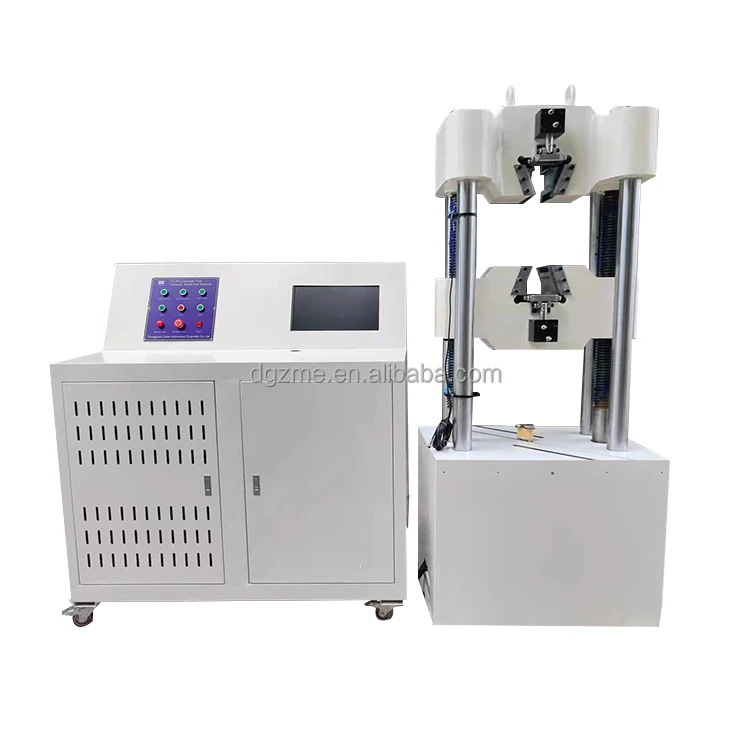

Universal testing machine, a material testing machine integrating tensile, bending, compression, shearing, ring stiffness and other functions. It is mainly used for the mechanical performance testing of metal and non-metal materials. It is used in industrial and mining enterprises, scientific research units, colleges and universities, engineering Ideal testing equipment for quality supervision stations and other departments.
